Test Equipment

NEW NEW NEW NEW NEW NEW NEW in 2008

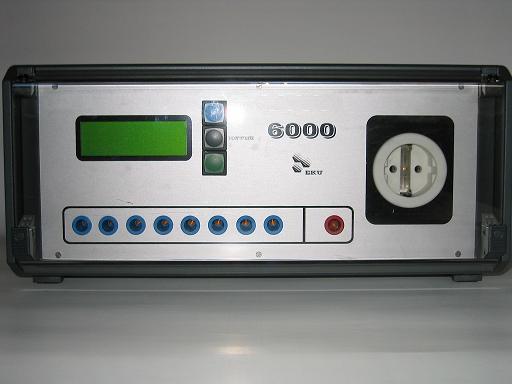

IEC Test-System

IEC 601-Tester with High Voltage Test (first time on the market)

Measurement by IEC 601


ISOLATION RESISTANCE
GROUND LEAKAGE CURRENT
CASE LEAKAGE CURRENT
PATIENT LEAKAGE CURRENT
PROTECTION GROUND


ETC:

Measurements by VDE 0751 (Germany spec.)


REPLACEMENT DEVICE LEAKAGE CURRENT CLASS I CLASS II
DEVICE LEAKAGE CURRENT Direct CLASS I CLASS II
REPLACEMENT PATIENT LEAKAGE CURRENT
REPLACEMENT PATIENT LEAKAGE CURRENT  Type B
CURRENT MEASUREMENT
POWER SUPPLY VOLTAGE MEASUREMENT

HIGH VOLTAGE TEST

TEST OF THE  PATIENTCABLES-INLETS
HICH VOLTAGE ISOLATION TEST WITH  5000 Volts / 500uA

- SPARK-OVER RECOCNITION
- DURATION 30 sec


MORE FEATURES :

REMOTE CONTROL VIA RS232 AND THE PROVIDED SOFTWARE

-MEDOC-.

CONTROL OF THE MTP6000 VIA TEST REGULATIONS

DEVICE PROTECTION

FUSE : AUTOMATIC 16A
CASE IP40
CONNECTIONS IP 20 by DIN VDE 0470 Part 1/EN60529
WEIGHT 12kg

ELECTRICAL SAFETY

PROTECTION CLASS I by IEC 601/VDE 0750
POWER SUPPLY 230 V (110Volts)
TEST VOLTAGE 5 KV

SPARK OVER CATEGORY II

DATA INTERFACE RS232

ART RS232, serial, by DIN 19241
Format 38,4 kBaud,N,8,1
